How do I get started with Hololight Stream SDK for Unity?

Establish a connection with your XR device to a Unity 3D Project with Hololight Stream

Software_Development_Kit_SDK_Icon

Download Trial Version
Hololight Stream SDK for Unity

VR_Glasses_Device_Icon

Download Clients
Store or Sideloading

If your project already includes Hololight Stream, remove any files left over from previous versions before installing the latest version. After removing all older files, you can continue with the installation.

  1. In the Unity Editor menu bar, select Window > Package Manager.
  2. Find any Hololight Stream packages and select Remove.

Before working with Hololight Stream, review the supported Unity versions listed below. Newer versions of Unity may work but aren’t fully tested.



Supported Unity versions
Unity 2022.3 (LTS) Unity 2021.3 (LTS)

Before integrating the Hololight Stream SDK into your project, review the system, software, and network recommendations and requirements.

Requirements and recommendations
System Software Network

Install Unity and create a project

This guide shows how to install Hololight Stream into a Unity template project and connect to that project in the editor. You'll need Unity Hub to proceed.

  1. Install Unity Hub on your Windows computer and sign in or create an account.

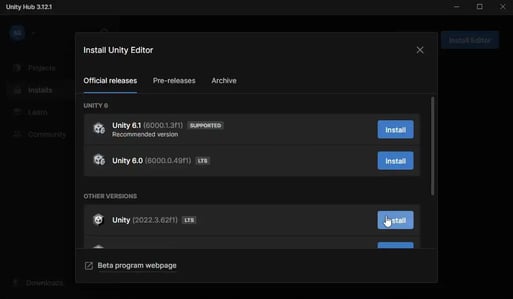

  2. Select Installs in the left sidebar, then click Install Editor in the top-right corner.
    Screenshot_Hololight Stream Unity SDK Guide_7
  3. Choose a Unity Editor version that Hololight Stream supports and select Install.

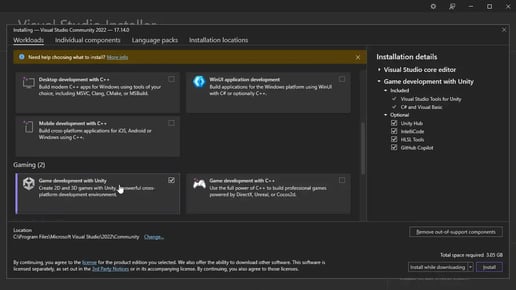

    1. During the installation, a Visual Studio pop-up might appear.
    2. Select Continue and follow the instructions to reach the install window.
    3. Check the box for Game development with Unity and select Install.
      Screenshot_Hololight Stream Unity SDK Guide_9
  4. After Unity and Visual Studio are installed, you can create your project.

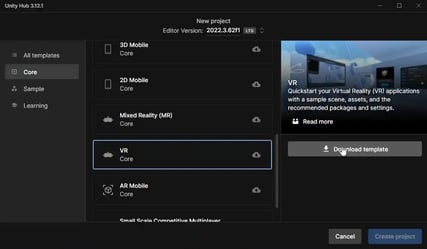

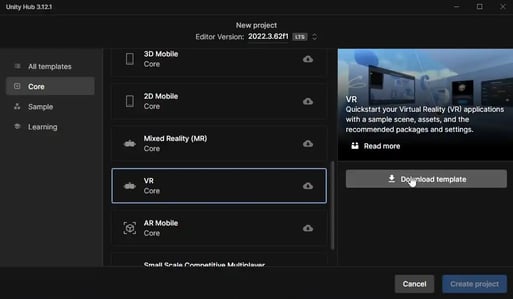

  5. Select Projects in the left sidebar and navigate to New Project > Core > VR Core > Download Template.
    Screenshot_Hololight Stream Unity SDK Guide_8
  6. Unity will now create the project. This may take a few minutes.

First Installation

  1. Open your Unity VR Core template, if not already open.
  2. Make sure your Unity Version is supported by Hololight Stream.

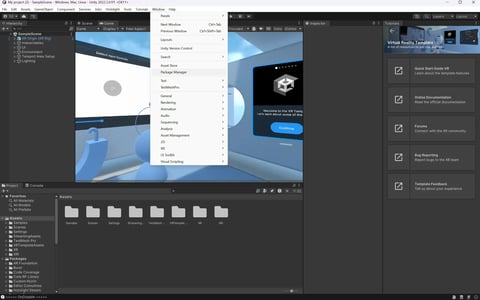

  3. Select Window > Package Manager.
    Screenshot_Hololight Stream Unity SDK Guide_1

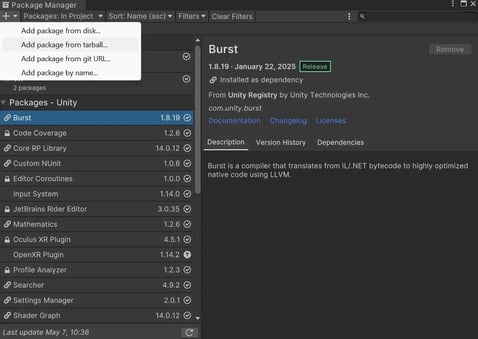

  4. In the Package Manger, select + > Add package from tarball.
    Screenshot_Hololight Stream Unity SDK Guide_2
  5. Find the Hololight Stream Folder you downloaded and unzipped earlier.
  6. Open the Packages folder. Select the file com.hololight.stream-<version>.tgz where <version> is the current version of Hololight Stream.
release_notes_info_icon A warning may appear asking if you want to enable the native platform backends for the new input system. Select Yes and Unity will restart.

Configure the project

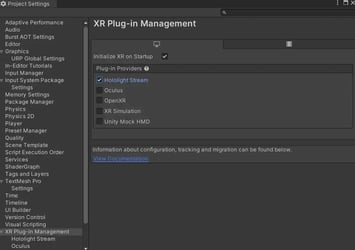

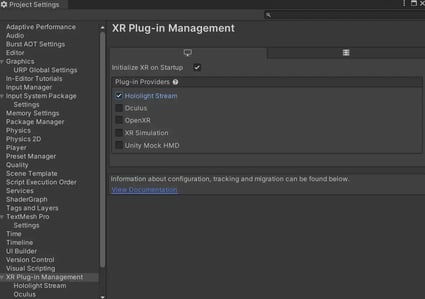

  1. Select Edit > Project Settings > XR Plug-in Management.
    Screenshot_Hololight Stream Unity SDK Guide_4
  2. Check the box next to Initialize XR on Startup.
  3. Under Plug-in Providers, check the box next to Hololight Stream.
    1. Make sure only Hololight Stream is selected.
  4. Select File > Build Settings.
  5. In the Build Settings panel, set the following options:
Platform Windows, Mac, Linux
Target Platform Windows
Signaling Server Intel 64-Bit

Run Hololight Stream for the first time

After setting up Hololight Stream, select Play. If setup was successful, you'll be able to connect to the application using the Hololight Stream client.

  1. Download and install the Hololight Stream client on your XR device.
  2. Make sure your PC and your XR device are in the same network.

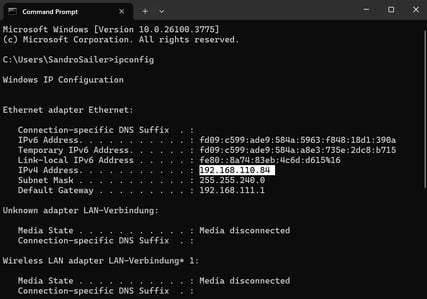

  3. Get the PC's IP adress by
    1. Press Windows Key > Enter Command Prompt > Open Command Prompt
    2. Type ipconfig > Press Enter > Look for IPv4
    3. The IPv4 is your IP adress and looks something like this: 192.168.110.84.
      Screenshot_Hololight Stream Unity SDK Guide_5
  4. Select Play in your Unity Editor.
  5. Open the Hololight Stream client on your device.
  6. Enter your PC's IP adress in the client.
  7. Select Connect.

When connected with Hololight Stream Client, you’ll see the contents of the first scene under Scenes to Build. If your scene is empty, you won’t see anything. In Unity, you will see the Main Camera move in sync with your client device’s movements. You can also build and run a standalone application to test.

Connection Details

To see information about your current Hololight Stream connection status, select Hololight > Hololight Stream > Connection Details. Here you can see the following:

Client details
Property Description
Device The device that the connected Hololight Stream Client is running on
Reality type

The type of XR experience the client is using. For Example:

  • Augmented Reality
  • Passthrough Augmented Reality
  • Virtual Reality
Version Version number for the connected Hololight Stream Client
Stream configuration
Property Description
Resolution Resolution of the connected Hololight Stream client
Target frame rate The target frame rate for the system
Bandwith Maximum bandwidth limit while streaming
Codec Preferred codec for encoding and decoding
Depth buffer streaming Wether depth buffer is enabled in the stream

Features

The Hololight Stream SDK for Unity includes a wide range of features. For details, refer to the documentation in the downloaded SDK package.

List of supported extensions, core components and toolkits
Extensions Core components Toolkits
QR Codes Audio XR Interaction Toolkit
Image tracking 2D Camera Microsoft Mixed Reality Toolkit 2
Raycasts Haptics Microsoft Mixed Reality Toolkit 3
Spatial Anchors Microphone AR Foundation
Occlusion
Object Stabilization
Scene understanding
Meshing
Gaze
Touch
Speech Recognition
Video Passthrough
DirectX12
Signaling (Custom Extension)

Summary

Use this guide to set up your Unity 3D project with Hololight Stream. For step-by-step instructions, please refer to the documentation included in the Hololight Stream SDK for Unity folder.

If you need additional help, don’t hesitate to contact us or explore the troubleshooting section.
