How do I use Hololight Stream Runtime with Blender?

Set up and use Hololight Stream Runtime with Blender, including streaming and troubleshooting

blender_logo

To use Hololight Stream Runtime with Blender, make sure to enable the VR Scene Inspection add-on. Compatibility has been tested with Blender version 4.0 and above.

Blender setup

  1. Open Blender.

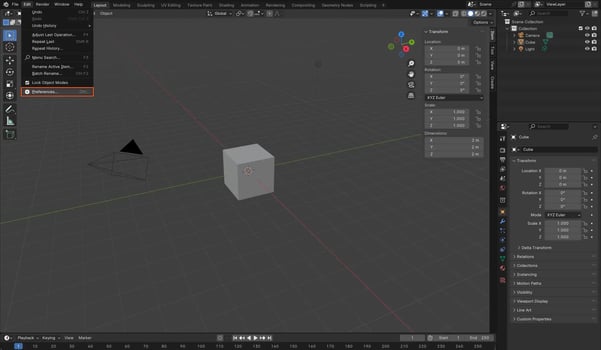

  2. Go to Edit > Preferences in the top left corner.
    Screenshot_Hololght_Stream_Runtime_Blender_1

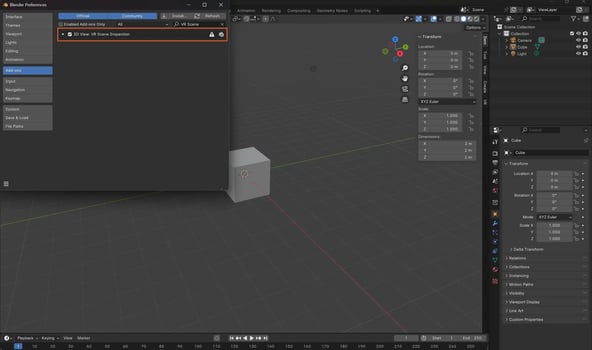

  3. Open the Add-Ons tab.
    Screenshot_Hololght_Stream_Runtime_Blender_2
  4. Search for VR Scene and enable VR Scene Inspection.

Start the session and connect

To enable streaming, install Hololight Stream Runtime on your workstation. For detailed instructions, see our Hololight Stream Runtime getting started guide.

  1. Open the Hololight Stream Runtime utility.
  2. Select your XR device in the dropdown menu.
    Screenshot_Hololight_Stream_Runtime_Utility_5
  3. Choose between Passthrough or VR mode.

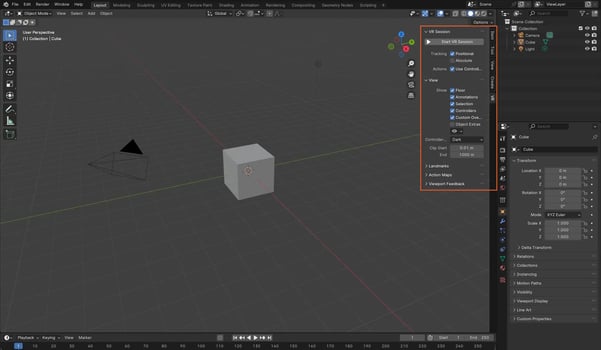

  4. Select Start VR Session to connect.
    Screenshot_Hololght_Stream_Runtime_Blender_3

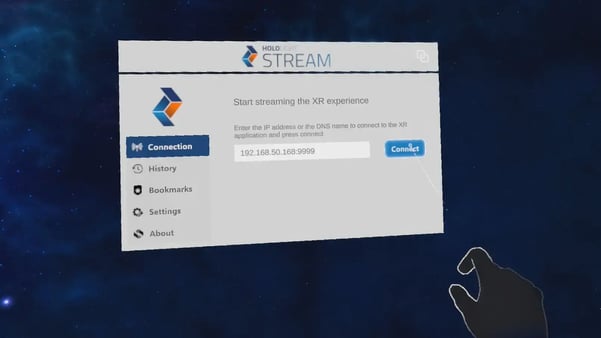

  5. Open Hololight Stream Client on your supported XR device.
  6. Enter the IP adress shown in the Hololight Stream Runtime utility and select Connect.
    Screenshot_Stream_Client_1_1920x1080

Interaction modes in Blender

Interactions in Blender depend on your XR device and whether you’re using controllers or hand tracking. Currently Blender doesn't support Hand Tracking coming in the latest version of the VR Inspection add-on.

Troubleshooting connection issues

If your XR device can’t connect, first make sure it and your PC are on the same network. Then check that your firewall isn’t blocking Hololight Stream Runtime. For more tips, read our Software, System, and Network requirements and our detailed troubleshooting guide.
