How do I import 3D Models and Files in Hololight Space

Preparing your files and loading them in Hololight Space

Preparing Files for Hololight Space Local

Before importing 3D models and other files into Hololight Space, we highly recommend organizing them into the appropriate folders as shown in the steps.

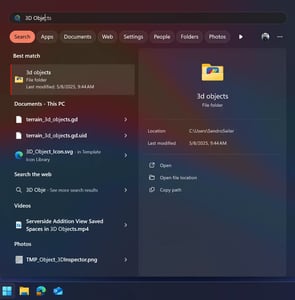

  1. Open Windows Search Bar > Type "3D Objects" > Open 3D Objects Folder
    Screenshot_Hololight_Space_Import Files_1

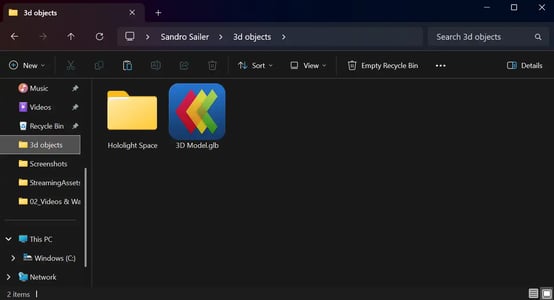

  2. Drop your 3D Files in this folder - See Supported File Formats for more informations.
    Screenshot_Hololight_Space_Import Files_2

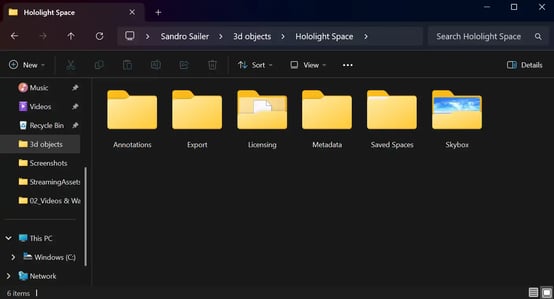

  3. Double Click "Hololight Space" Folder inside the 3D Objects Folder
  4. If you want to have custom Annotations or Skyboxes, drop them in the corresponding folders
    Screenshot_Hololight_Space_Import Files_3
  5. You will also find Exported Spaces, Saved Spaces and you Licensing Folder here

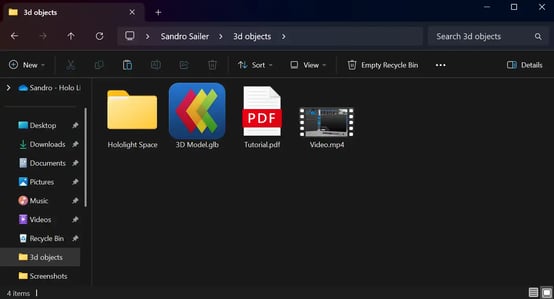

  6. Drop PDFs and videos into the 3D Object folder to load them just like 3D models
    Screenshot_Hololight_Space_Import Files_4



Preparing Files for Hololight Space Cloud

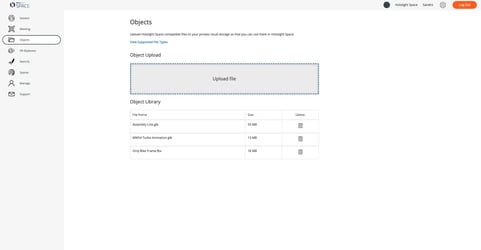

  1. Open hololight.space and login with your credentials
  2. Click "Objects" in the left sidebar
  3. Select your files you want to upload
    Screenshot_Hololight_Space_Import Files_5

Import Files in Hololight Space Local & Cloud

This video provides a detailed walkthrough of the file preparation and loading process for Hololight Space, applicable to both the On-Premises version and the cloud. Additionally, it highlights the convenient drag-and-drop feature, allowing you to effortlessly transfer your files directly into your Space.

Open the file browser (Load Object) from the Welcome Screen, the Quick Hand Menu, or via the Space Manager.
