How do I use Hololight Stream Runtime with KeyShot?

Set up and use Hololight Stream Runtime with KeyShot Studio VR, including streaming and troubleshooting

Keyshot Studio VR Logo
After installing Hololight Stream Runtime, you can start your VR experience in KeyShot Studio. Please note that KeyShot Studio VR must be installed on your PC. You can also open your scenes directly with KeyShot Studio VR.
  1. Open your KeyShot Studio VR project.

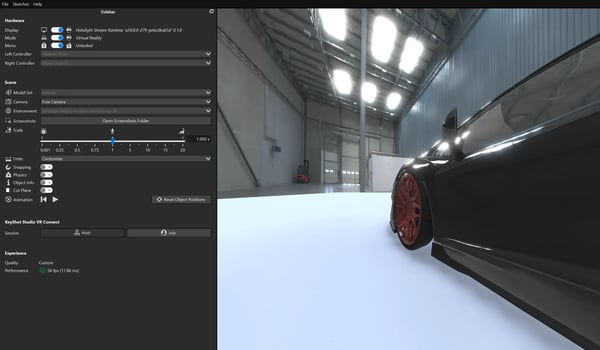

  2. Go to KeyShot Studio VR Connect > Session and select Host.
    Screenshot_Hololight_Stream_Runtime_Keyshot_4

Start a session and connect

In order to enable streaming, you need to install Hololight Stream Runtime on your workstation. Find more information in our Hololight Stream Runtime getting started guide.

  1. Open the Hololight Stream Runtime utility.
  2. Select your XR device in the dropdown menu.
    Screenshot_Hololight_Stream_Runtime_Utility_5
  3. Choose between Passthrough or VR mode.
  4. Open Hololight Stream Client on your supported XR device.
  5. Enter the IP adress shown in the Hololight Stream Runtime utility and select connect.
    Screenshot_Stream_Client_1_1920x1080

Troubleshooting connection issues

If your XR device can’t connect, first make sure it and your PC are on the same network. Then check that your firewall isn’t blocking Hololight Stream Runtime. For more tips, read our SoftwareSystem, and Network requirements and our detailed troubleshooting guide.
